Delphi | Bremsbelagsatz, Scheibenbremse | LP2490
Delphi | Bremsbelagsatz, Scheibenbremse | LP2490
| Hersteller | Delphi |
| Hersteller-Nr. | LP2490 |
| Moto100-Nr. | 10007909 |

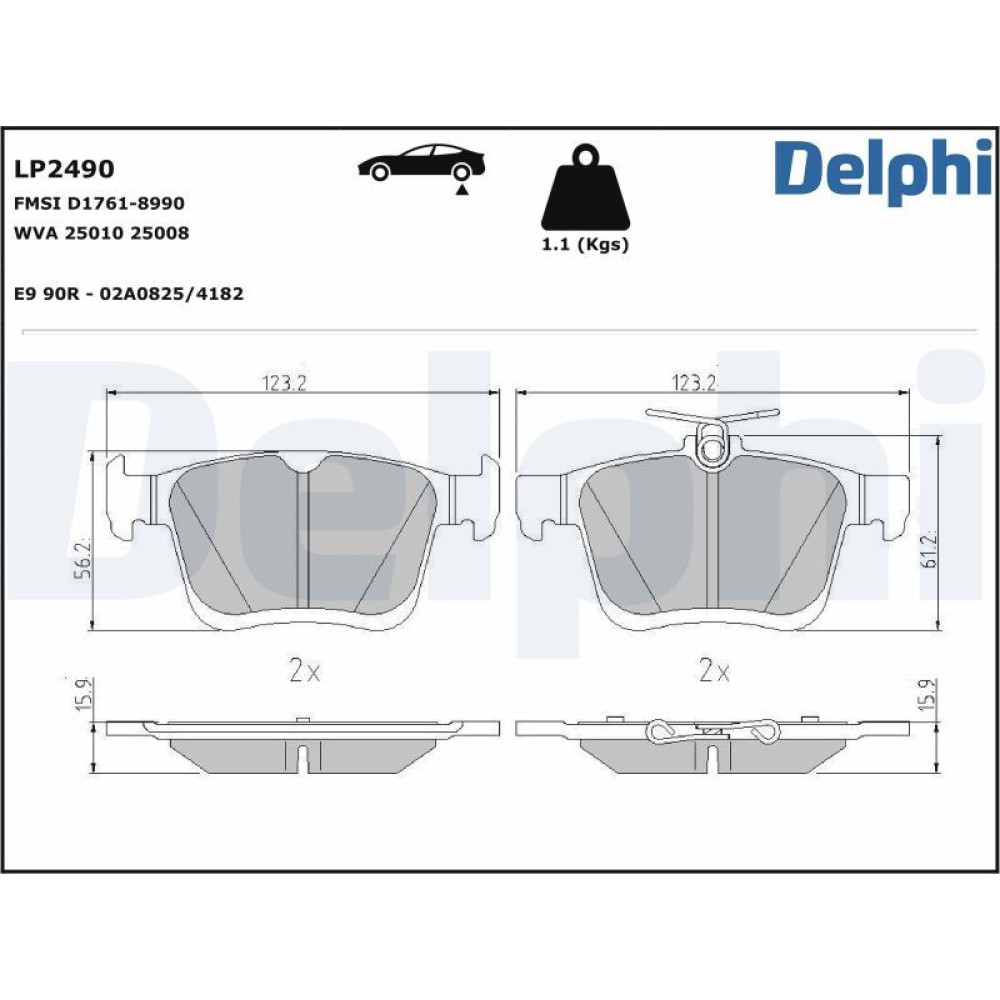

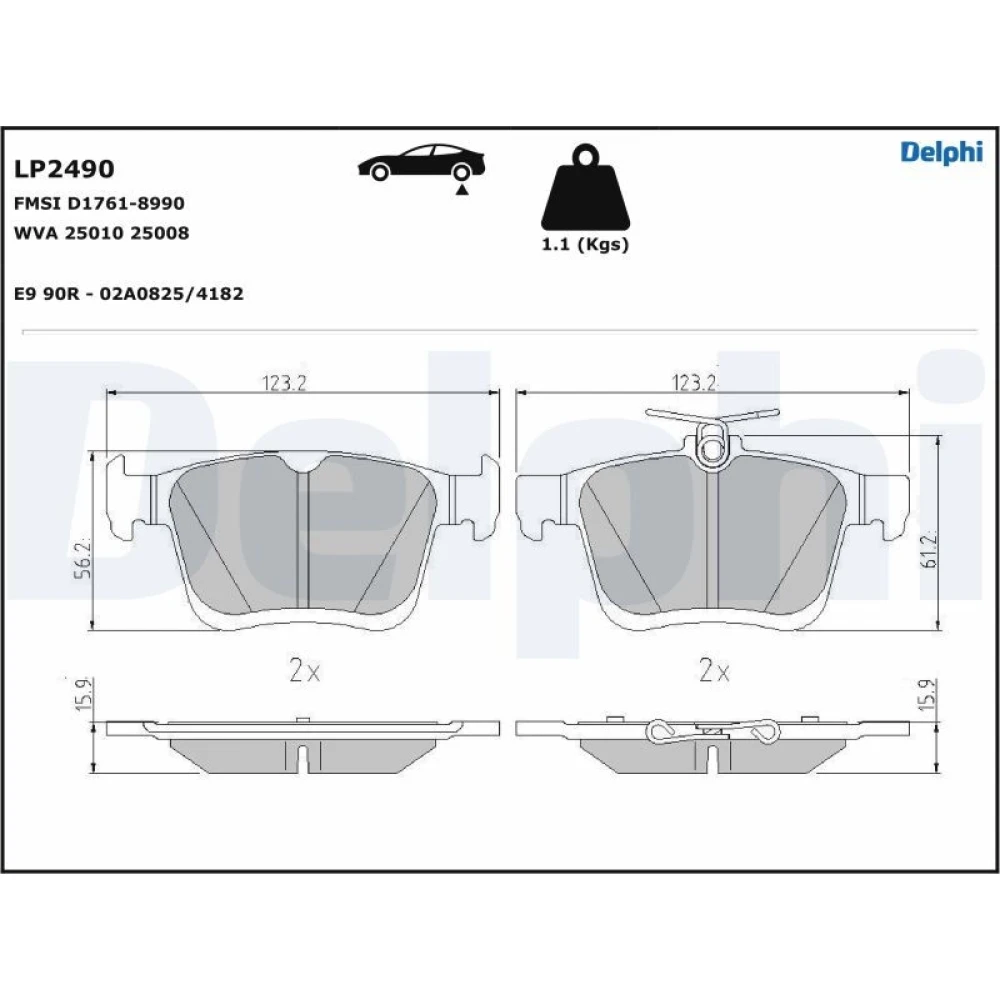

| Breite 1 [mm] | 123,2 |
| Breite 2 [mm] | 123 |
| Bremssystem | Continental |
| Dicke/Stärke 1 [mm] | 16,2 |
| Dicke/Stärke 2 [mm] | 16,2 |
| FMSI-Code | D1761-8990 |
| Höhe 1 [mm] | 61,3 |
| Höhe 2 [mm] | 50,9 |
| Prüfzeichen | E9 90R-02A0825/4182 |
| Reibbelagmaterial | Low-Metallic |
| Verschleißwarnkontakt | nicht für Verschleißwarnanzeiger vorbereitet |
| WVA-Nummer | 25010 25008 |
| Zusatzinformation | ohne Zubehör |
[EN] How to diagnose warped brake discs | Masters of Motion
[EN] How to replace front discs and brake pads | Masters of Motion
[EN] How to check and test brake fluid | Masters of Motion
OE-Nummern
Diese Liste entspricht den Original-Ersatzteilnummern (OE-Nummern) der Fahrzeughersteller.
| Fahrzeughersteller | OE-Nummer |
|---|---|
| AUDI | 3Q0 698 451 |
| AUDI | 5Q0698451AD |
| AUDI | 5Q0 698 451C |
| AUDI | 5Q0 698 451N |
| AUDI | 5Q0698451Q |
| AUDI | 8V0 698 451 |
| AUDI | 8V0 698 451B |
| AUDI | 8V0 698 451D |
| AUDI | 8V0698451F |
| ROEWE (SAIC) | 10588655 |
| ROEWE (SAIC) | 11070562 |
| SEAT | 3Q0 698 451 |
| SEAT | 5Q0698451AD |
| SEAT | 5Q0698451N |
| SEAT | 5Q0698451Q |
| SEAT | 8V0 698 451B |
| SEAT | 8V0698451D |
| SEAT | 8V0698451F |
| SKODA | 3Q0 698 451 |
| SKODA | 5Q0698451AD |
| SKODA | 5Q0698451N |
| SKODA | 5Q0698451Q |
| SKODA | 5Q0698451T |
| SKODA | 8V0698451D |
| VW | 3Q0 698 451 |
| VW | 5Q0698451AD |
| VW | 5Q0698451AF |
| VW | 5Q0698451AK |
| VW | 5Q0 698 451C |
| VW | 5Q0698451N |
| VW | 5Q0698451Q |
| VW | 5Q0698451R |
| VW | 8V0 698 451 |
| VW | 8V0698451B |
| VW | 8V0698451D |
| VW | 8V0698451F |
| VW | JZW698451AA |
Vergleichsnummern
Diese Liste entspricht den Artikelnummern (Vergleichsnummern) der Hersteller.
| Hersteller | Artikelnummer |
|---|---|
| A.B.S. | 37964 |
| A.B.S. | 37965 |
| ABAKUS | 231-02-041 |
| ATE | 13.0460-7293.2 |
| ATE | 13.0460-7294.2 |
| ATE | 13.0470-7293.2 |
| ATE | 13.0470-7294.2 |
| BLUE PRINT | ADV184243 |
| BOSCH | 0 986 460 011 |
| BOSCH | 0 986 494 658 |
| BOSCH | 0 986 494 659 |
| BOSCH | 0 986 495 346 |
| BREMBO | P 85 124 |
| BREMBO | P 85 124X |
| BREMBO | P 85 125 |
| BREMBO | P 85 125E |
| BREMBO | P 85 125X |
| DELPHI | LP5011EV |
| FAI AutoParts | BP115 |
| FEBI BILSTEIN | 16995 |
| FERODO | FDB4434 |
| FERODO | FDB4697 |
| FTE | 9010676 |
| FTE | 9010957 |
| FTE | BL2091A1 |
| FTE | BL2745A1 |
| HELLA | 8DB 355 020-261 |
| HELLA | 8DB 355 020-271 |
| HELLA PAGID | 8DB 355 020-261 |
| HELLA PAGID | 8DB 355 020-271 |
| JP GROUP | 1163708610 |
| KRAFT AUTOMOTIVE | 6000125 |
| MAGNETI MARELLI | 363700485124 |
| MAGNETI MARELLI | 363700485125 |
| MAGNETI MARELLI | 363700585124 |
| MAGNETI MARELLI | 363700585125 |
| MAGNETI MARELLI | 363916060713 |
| MAGNETI MARELLI | 363916060714 |
| MAGNETI MARELLI | 363916061161 |
| MAGNETI MARELLI | 363916061162 |
| MAXGEAR | 19-3012 |
| MAXGEAR | 19-3598 |
| MAXGEAR | 19-3884 |
| METZGER | 1170470 |
| METZGER | 1170829 |
| MEYLE | 025 250 0816 |
| MEYLE | 025 250 0816/PD |
| MEYLE | 025 250 0916 |
| MEYLE | 025 250 0916/PD |
| NK | 2247114 |
| NK | 2247116 |
| ProfiPower | 1B2077 |
| ProfiPower | 1B2102 |
| QUARO | QP6346 |
| QUARO | QP6346C |
| QUARO | QP7274 |
| QUARO | QP7274C |
| QUARO | QP9775 |
| QUARO | QP9775C |
| SASIC | 6216075 |
| SASIC | 6216197 |
| SKF | VKBP 90013 |
| SKF | VKBP 90152 |
| SWAG | 30 91 6995 |
| TEXTAR | 2500801 |
| TEXTAR | 2500901 |
| TOPRAN | 115 815 |
| TOPRAN | 116 650 |
| TRISCAN | 8110 29171 |
| TRISCAN | 8110 29172 |
| TRUCKTEC AUTOMOTIVE | 07.35.262 |
| TRUCKTEC AUTOMOTIVE | 07.35.275 |
| TRW | GDB1957 |
| TRW | GDB2179 |
| VAICO | V10-1023 |
| VAICO | V10-8168 |
| VAICO | V10-9890 |
| VAICO | V10-9891 |
| VALEO | 302146 |
| VALEO | 302444 |
| VALEO | 601329 |
| VALEO | 601425 |
| VALEO | 610377 |
| VALEO | 610392 |
| ZIMMERMANN | 25008.165.1 |
| ZIMMERMANN | 25009.165.1 |
