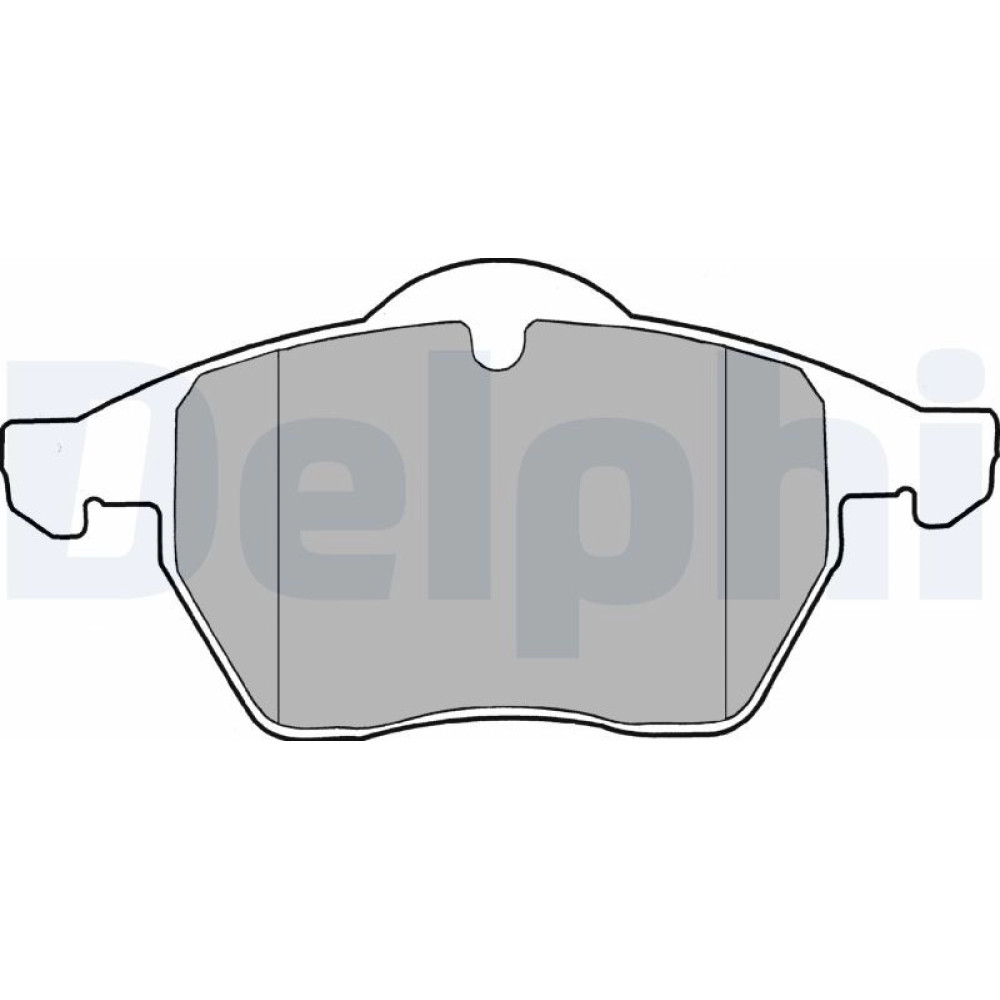

Delphi | Bremsbelagsatz, Scheibenbremse | LP1407
Delphi | Bremsbelagsatz, Scheibenbremse | LP1407
| Hersteller | Delphi |
| Hersteller-Nr. | LP1407 |
| Moto100-Nr. | 10007170 |

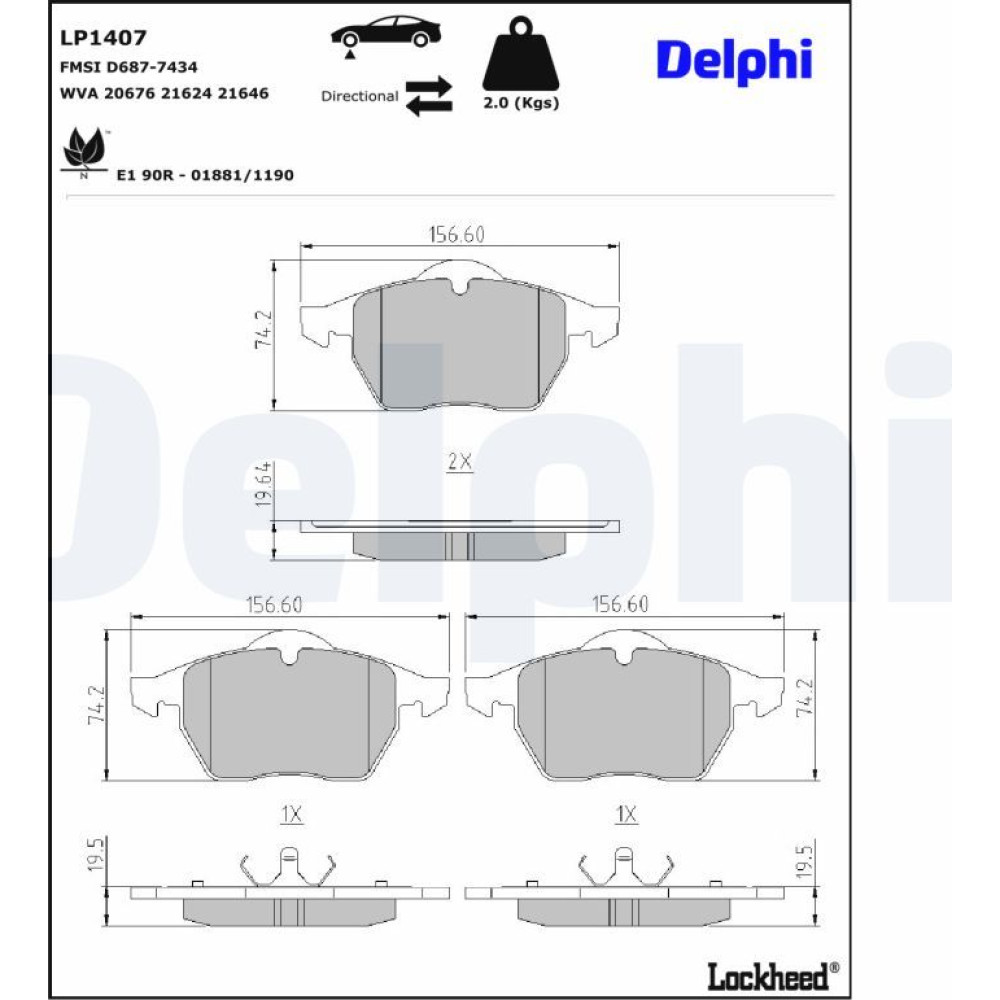

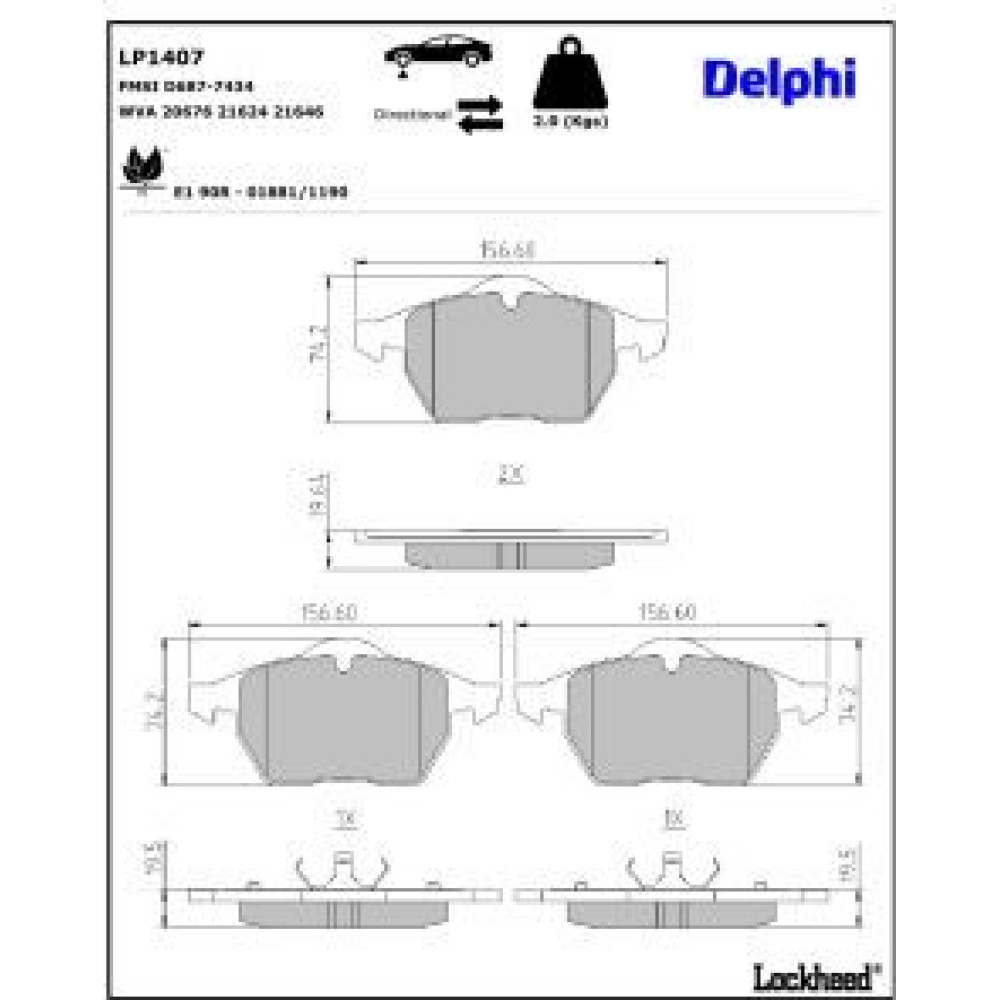

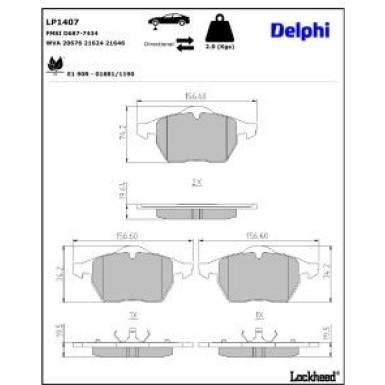

| Breite 1 [mm] | 156,5 |
| Breite 2 [mm] | 156,3 |
| Bremssystem | Continental |
| Dicke/Stärke 1 [mm] | 19,5 |
| Dicke/Stärke 2 [mm] | 19,5 |
| FMSI-Code | D687-7434 |
| Höhe 1 [mm] | 74 |
| Höhe 2 [mm] | 74 |
| Prüfzeichen | E1 90R-01881/1190 |
| Reibbelagmaterial | Low-Metallic |
| Verschleißwarnkontakt | nicht für Verschleißwarnanzeiger vorbereitet |
| WVA-Nummer | 20676 21624 21646 |
| Zusatzinformation | ohne Zubehör |
[EN] How to diagnose warped brake discs | Masters of Motion
[EN] How to replace front discs and brake pads | Masters of Motion
[EN] How to check and test brake fluid | Masters of Motion
OE-Nummern
Diese Liste entspricht den Original-Ersatzteilnummern (OE-Nummern) der Fahrzeughersteller.
| Fahrzeughersteller | OE-Nummer |
|---|---|
| AUDI | 3A0 615 116A |
| AUDI | 3A0 615 116B |
| AUDI | 4D0698151A |
| AUDI | 8D0 615 116B |
| AUDI | 8D0 615 116D |
| AUDI | 8D0 698 151A |
| AUDI | 8D0 698 151C |
| AUDI | 8D0 698 151F |
| SEAT | 3A0 615 116A |
| SEAT | 3A0 615 116B |
| SEAT | 3A0 698 151A |
| SKODA | 3A0 698 151A |
| VW | 3A0 615 116A |
| VW | 3A0 615 116B |
| VW | 3A0 698 151 |
| VW | 3A0 698 151A |
| VW | 4D0 698 151A |
| VW | 8D0 615 116B |
| VW | 8D0 615 116D |
| VW | 8D0 698 151A |
| VW | 8D0 698 151C |
| VW | 8D0 698 151F |
| VW | JZW698151P |
Vergleichsnummern
Diese Liste entspricht den Artikelnummern (Vergleichsnummern) der Hersteller.
| Hersteller | Artikelnummer |
|---|---|
| A.B.S. | 35026 |
| A.B.S. | 36898 |
| A.B.S. | 37005 |
| ABAKUS | 231-01-158 |
| ATE | 13.0460-2700.2 |
| ATE | 13.0460-7077.2 |
| ATE | 13.0460-7081.2 |
| ATE | 13.0470-7081.2 |
| BLUE PRINT | ADV184232 |
| BOSCH | 0 986 424 460 |
| BOSCH | 0 986 424 481 |
| BOSCH | 0 986 494 436 |
| BREMBO | P 85 036 |
| BREMBO | P 85 045 |
| FEBI BILSTEIN | 16314 |
| FEBI BILSTEIN | 16322 |
| FEBI BILSTEIN | 16334 |
| FEBI BILSTEIN | 16338 |
| FEBI BILSTEIN | 16762 |
| FERODO | FDB1167 |
| FERODO | FDB969 |
| FERODO | FDB985 |
| FTE | 9010136 |
| FTE | 9010230 |
| FTE | 9010241 |
| FTE | BL1355A2 |
| FTE | BL1524A1 |
| FTE | BL1552A2 |
| FTE | BL2406A1 |
| HELLA | 8DB 355 007-881 |
| HELLA | 8DB 355 008-021 |
| HELLA | 8DB 355 008-471 |
| HELLA PAGID | 8DB 355 007-881 |
| HELLA PAGID | 8DB 355 008-021 |
| HELLA PAGID | 8DB 355 008-471 |
| JP GROUP | 1163602510 |
| JP GROUP | 1163604810 |
| JP GROUP | 1163605110 |
| JP GROUP | 1163605210 |
| KRAFT AUTOMOTIVE | 6000350 |
| KRAFT AUTOMOTIVE | 6000390 |
| LEMFÖRDER | 24843 03 |
| MAGNETI MARELLI | 363700485035 |
| MAGNETI MARELLI | 363700485036 |
| MAGNETI MARELLI | 363700485038 |
| MAGNETI MARELLI | 363700485045 |
| MAGNETI MARELLI | 363916060137 |
| MAGNETI MARELLI | 363916060146 |
| MAXGEAR | 19-0650 |
| MAXGEAR | 19-0660 |
| MAXGEAR | 19-0661 |
| METZGER | 1170114 |
| METZGER | 1170280 |
| MEYLE | 025 214 5218/PD |
| MEYLE | 025 214 5218/W |
| MEYLE | 025 216 2419 |
| MEYLE | 025 216 2419/PD |
| MEYLE | 025 219 1119 |
| MEYLE | 025 219 1119/PD |
| NK | 224729 |
| NK | 224734 |
| NK | 224744 |
| ProfiPower | 1B1031 |
| ProfiPower | 1B1084 |
| QUARO | QP1752 |
| QUARO | QP1752C |
| QUARO | QP5013 |
| QUARO | QP5013C |
| QUARO | QP8417 |
| QUARO | QP8417C |
| SASIC | 6216143 |
| SKF | VKBP 80113 E |
| SKF | VKBP 80731 |
| SKF | VKBP 80936 |
| SWAG | 30 91 6338 |
| SWAG | 32 91 6762 |
| TEXTAR | 2162402 |
| TEXTAR | 2339201 |
| TOPRAN | 103 587 |
| TRISCAN | 8110 29006 |
| TRISCAN | 8110 29087 |
| TRUCKTEC AUTOMOTIVE | 07.35.104 |
| TRUCKTEC AUTOMOTIVE | 07.35.245 |
| TRW | GDB1200 |
| TRW | GDB1376 |
| TRW | GDB1717 |
| VAICO | V10-8130 |
| VAICO | V10-8131 |
| VAICO | V10-8132 |
| VAICO | V10-8143-1 |
| VALEO | 301355 |
| VALEO | 302493 |
| VALEO | 598303 |
| VALEO | 601712 |
| VALEO | 601808 |
| ZIMMERMANN | 21624.200.1 |
| ZIMMERMANN | 21911.200.1 |
